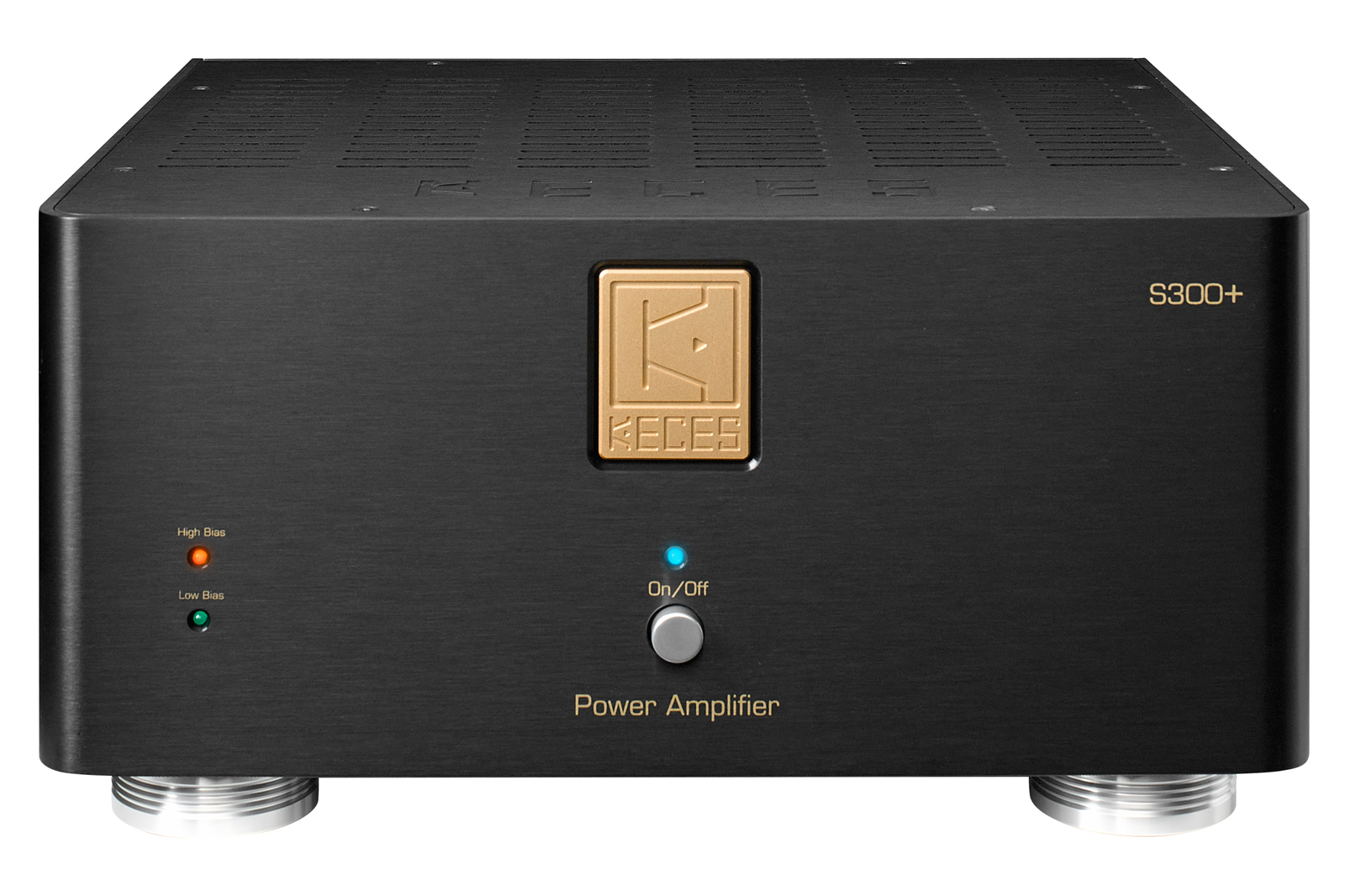

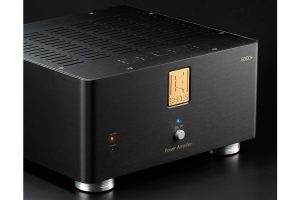

Keces S300 Endstufe
- 2 OZ Copper PCB for Power Layer, Ground Layer and Signal Layer to get high damping factor and get more sound quality.
- 130 watts x2 @ 8 ohm continuous output power / Maximum output power 240 watts x2 @ 8 ohm
- 225 watts x2 @ 4 ohm continuous output power / Maximum output power 300 watts x2 @ 4 ohm
- 410 watts x1 @ 8 ohm in bridge mode
- High bias Class A/AB operation
- 5 watts per channel of pure Class A power at high bias setting
- 45 amperes peak current per channel
- Stable with speaker impedance dips below 2 Ω
- Operation model selection: Stereo, Bi-Amp, Bridged
- Dual-mono design
- Direct-coupled signal path, no capacitors or inductors
- DC Servo and relay protection circuits
- JFET input stage, MOSFET driver stage

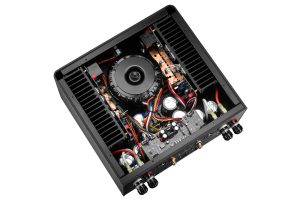

- 1.2 kVA toroid power transformer with independent secondary windings for each channel
- Independent power supplies for left & right channel input stages, driver. stages, output stages
- 65,600 µF Rubycon filter capacitors for output stages
- Automatic turn-on by 12 V trigger

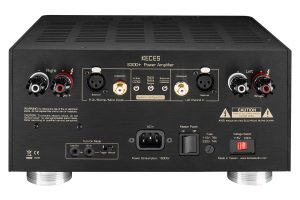

- Neutrik locking XLR input connectors
- Heavy-duty 24K gold-plated RCA input jacks
- Heavy-duty 24k gold-plated 5-way speaker binding posts
- AC turn-on inrush surge protection
- Overload/Over Temperature Protection
- The 4mm thickness of the aluminum chassis to effective to blocks
- EMI/RFI interference
